Installation Guide – Fitting UPCV Fascia, Soffit & Bargeboards

When putting up new fascias, soffits and bargeboards or replacing them, one option is to fit UPVC. Available in popular white, black and two shades of brown. UPVC fascia and soffit material will save maintenance and looks great - there will be no need for repainting every other year, just wiping down with a damp cloth and upvc cleaner should bring it back.

On some houses, the existing fascia will include fixings for the telephone and/or mains electricity, these services will need relocating onto any new UPVC fascia you fit, this relocation MUST to undertaken by the appropriate service supplier, so speak with them before you start.

Although not covered by this page, the roof guttering will need to be removed before the fascia can be replaced. See our installation of guttering guide.

SAFETY FIRST!
Remember that replacing fascia, soffit or bargeboard necessitates working at height and due care is necessary. It is not a job for a person on a ladder. Appropriate scaffolding is highly recommended.

When replacing a wooden fascia, soffit or bargeboard, it is recommended that the old fascia, soffit or bargeboards are all removed. Some 'professionals' will clad over existing wood but this risks trapping moisture which could cause serious rot in the structure.
Different types of board Note that different styles of board are available: Cover Board (aka 9mm capping board) Fascia Board (aka 16mm maxi board)
Cover Board (capping board) is, as the name suggests, for covering/capping existing fascia, whereas Fascia Board (maxi board) is intended for use without a backing surface. While Cover Board tends to be thinner as it is not acting alone as part of the structure, the main difference is that Fascia Board has a recess along the inner corner to locate the Soffit whereas the inner corner of Cover Board is a plain right-angle.
Fascias and Soffits Current building regulations require ventilation in the soffit for new buildings (equivalent to a one inch gap along the whole perimeter), although not absolutely necessary, when fitting replacement soffit, it is worth considering fitting pre-ventilated soffit to improve ventilation of the roof void.
If you need to replace wooden fascia, this probably indicates that the building is 20 years or more old and, where fitted, the roofing felt under the tiles should be checked at the eaves. Felt often deteriorates at this point and, if necessary, it should be replaced up to the first batten (or, as a minimum, 12 inches (300 mm)). When fitting new felt, ensure that it projects about 3 inches (75 mm) over the fascia and is fitted under the existing felt so that any water runoff runs onto the new felt rather than under it. See Felt Replacement product. Allow 5 mm clearance at each end of the material to allow for expansion. Fit a cover strip at each joint and corner. Before starting to fix a length of fascia or cover board, clear a whole side of the building of guttering etc. and fix a horizontal builders string line along the side of the building so that all sections of board can be levelled to the same line.
The figure to the right shows an existing wooden fascia clad with UPVC, if you decide to use this method, it is best to remove the existing soffit. As most existing soffits fit into a slot on the inside of the fascia, it is possible to release the soffit by cutting off the bottom of the fascia. The new fascia should be pushed up under the ends of the tiles and levelled before fixing, it's easier to get the fascia straight if the lowest row of tiles can be pushed up out of the way while the fascia is positioned and fixed. Fix the fascia using plastic headed Polytop stainless steel ring nails (specifically supplied for the job), two vertically at 600 mm horizontal centres. Position the nails vertically so that they spread the load, one near the top of the surface behind, one near the bottom. Keep the vertical position of the nails constant between horizontal positions otherwise the line of nails will look a mess.

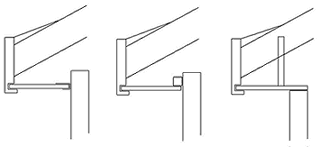

The building side of the replacement soffit can be fixed (see below): Into a upvc channel fixed to the wall of the house. Screwed to a wooden batten fixed above the soffit to the wall of the house. To the top of the outer brickwork using either a batten down from the rafters or a structural glue between the soffit and the top of the wall.

Tools for the Job
See our tools section to give you an idea on the tools required for carrying out all of these works.

As mentioned above, to do the job properly, the original timber fascia, soffit and bargeboard should be removed before fitting replacements. Any rot in the ends of the rafter should be repaired using good quality timber treated with preservative. Make sure that any old nails in the ends of the rafters are removed (or knocked in below the surface) The eaves felt should be checked and renewed. Fix the fascia to the ends of the rafters using plastic headed Polytop stainless steel ring nails, with the first set of tiles pushed up, locating the ends of the rafters is easier.
Bargeboards Cladding Bargeboards with UPVC is similar to cladding fascias, the main difference is that some cutting of sheet UPVC will be necessary to shape around the eaves end.
Typical eaves end and bargeboard on gable end

Eaves end and bargeboard on part-hipped roof
Product Overview Deeplas represents a fully integrated roofline system for fascias and soffits in new build or replacement. The product range allows extensive choice for an ideal long-lasting solution. The associated finishing profiles and moulded pieces ensure perfect finish even in the most difficult corners. Deeplas roofline systems are designed to be fixed onto the extisting structure. Using the 16mm thick fascia boards, means that gutters can be screwed directly onto the fascia. Flat of profiled boards may be used as soffit boards. Ventilated boards are available for applications requiring ventilated roof spaces.
